NICs

Current Transducers
for Industrial and Rail
applications

NICs

Current Transducers
for Industrial and Rail
applications

To assist wayside applications of Network Rail’s preventative maintenance program, by monitoring currents in rail signalling problems equipment.

FOR MORE INFORMATION CALL US ON

0161 765 3000

Precision… made here

How does it work?

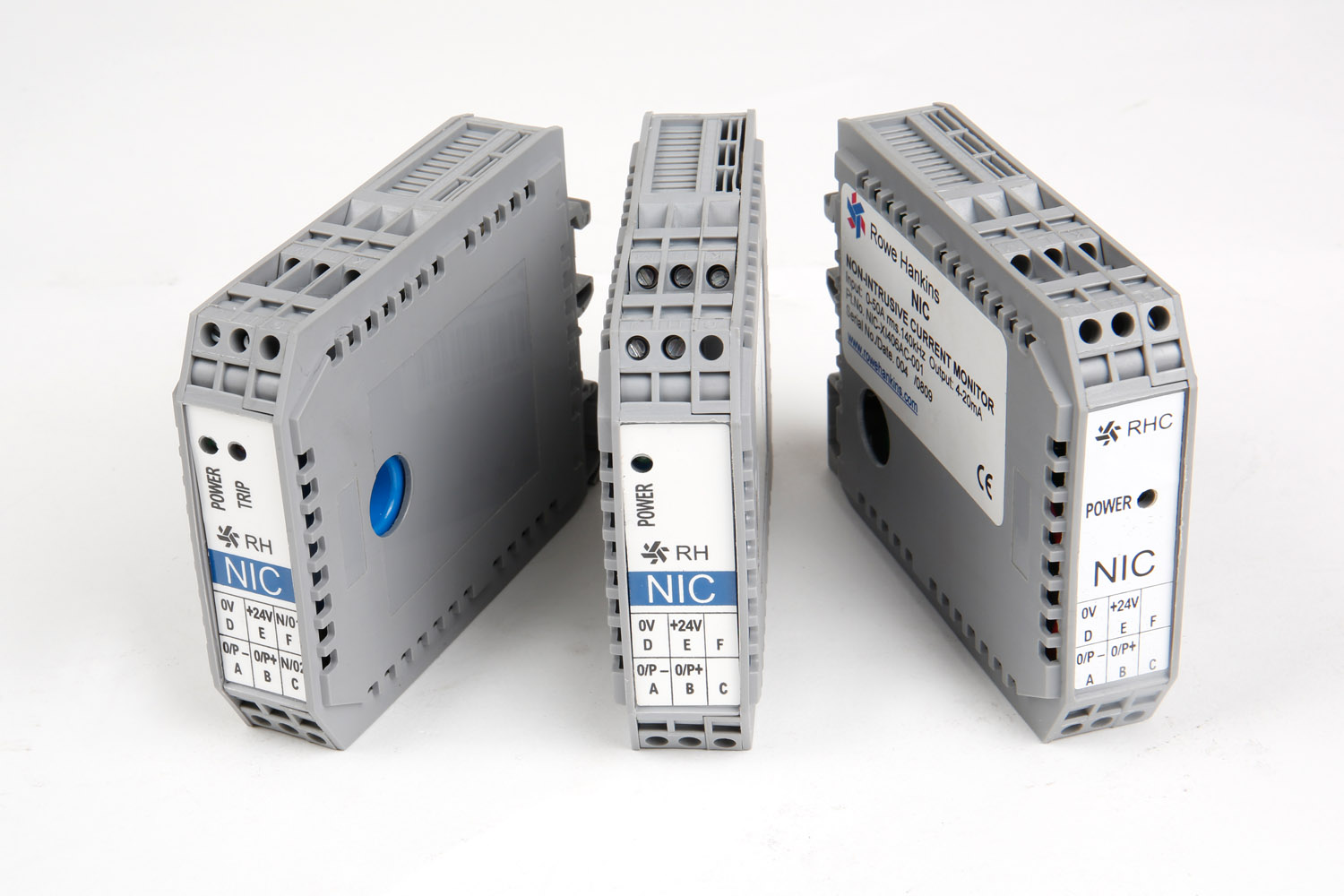

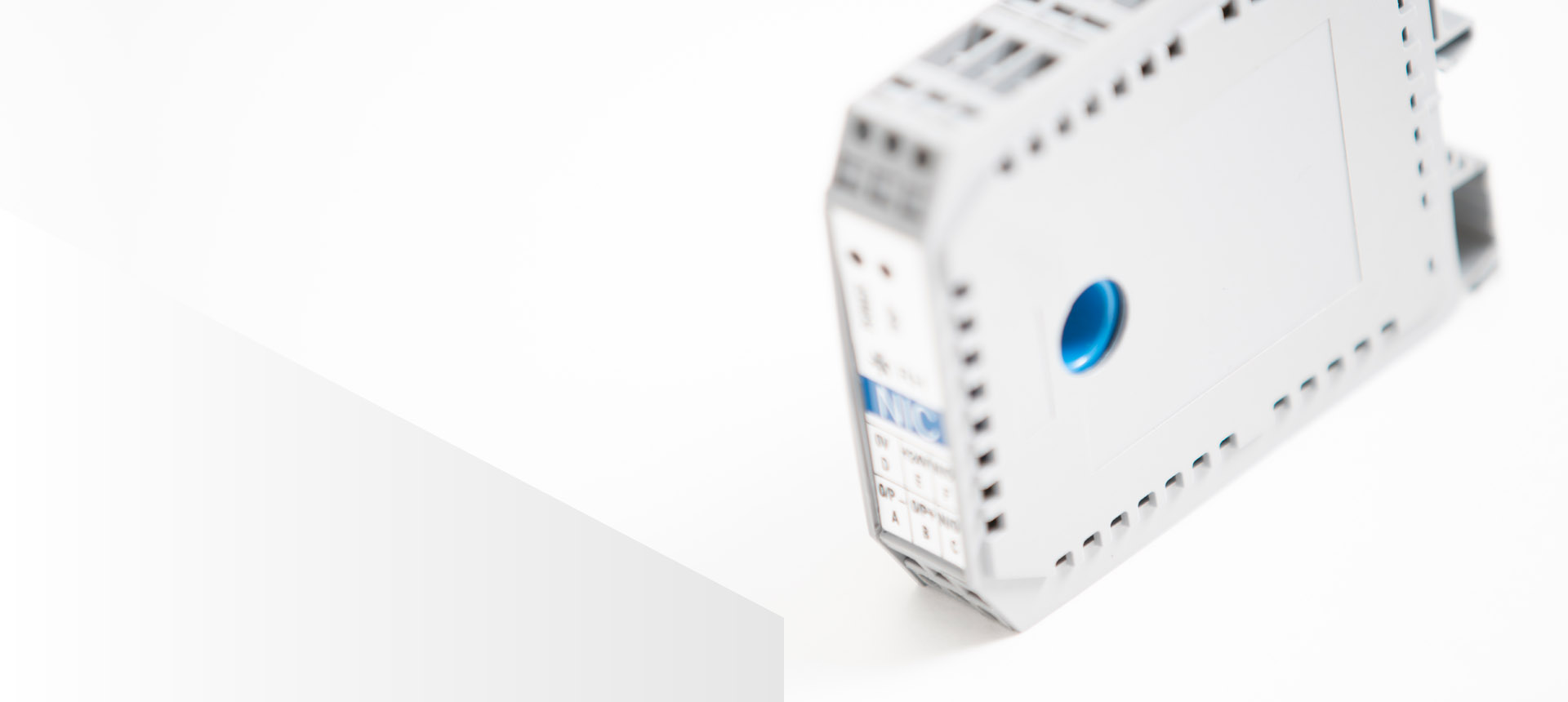

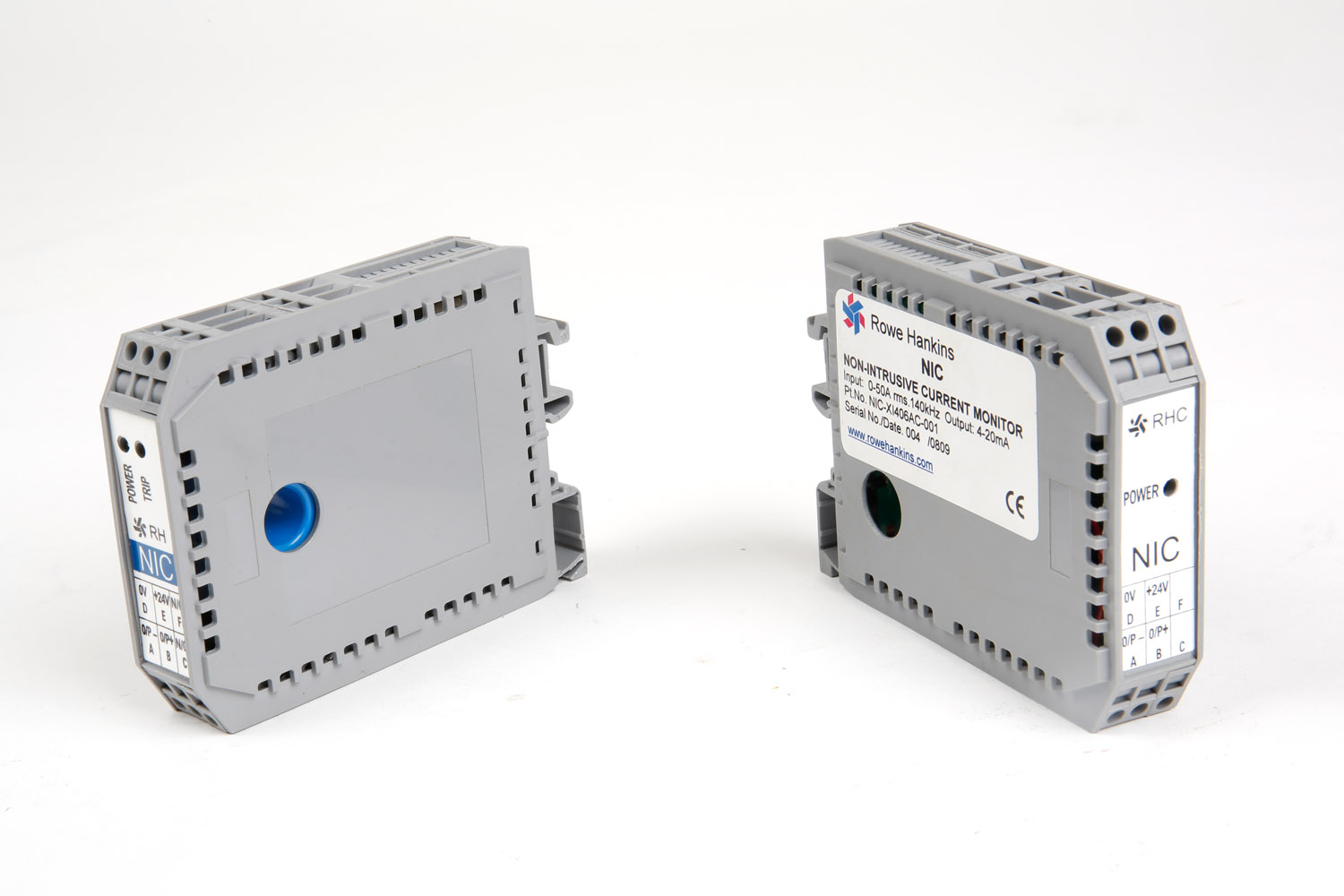

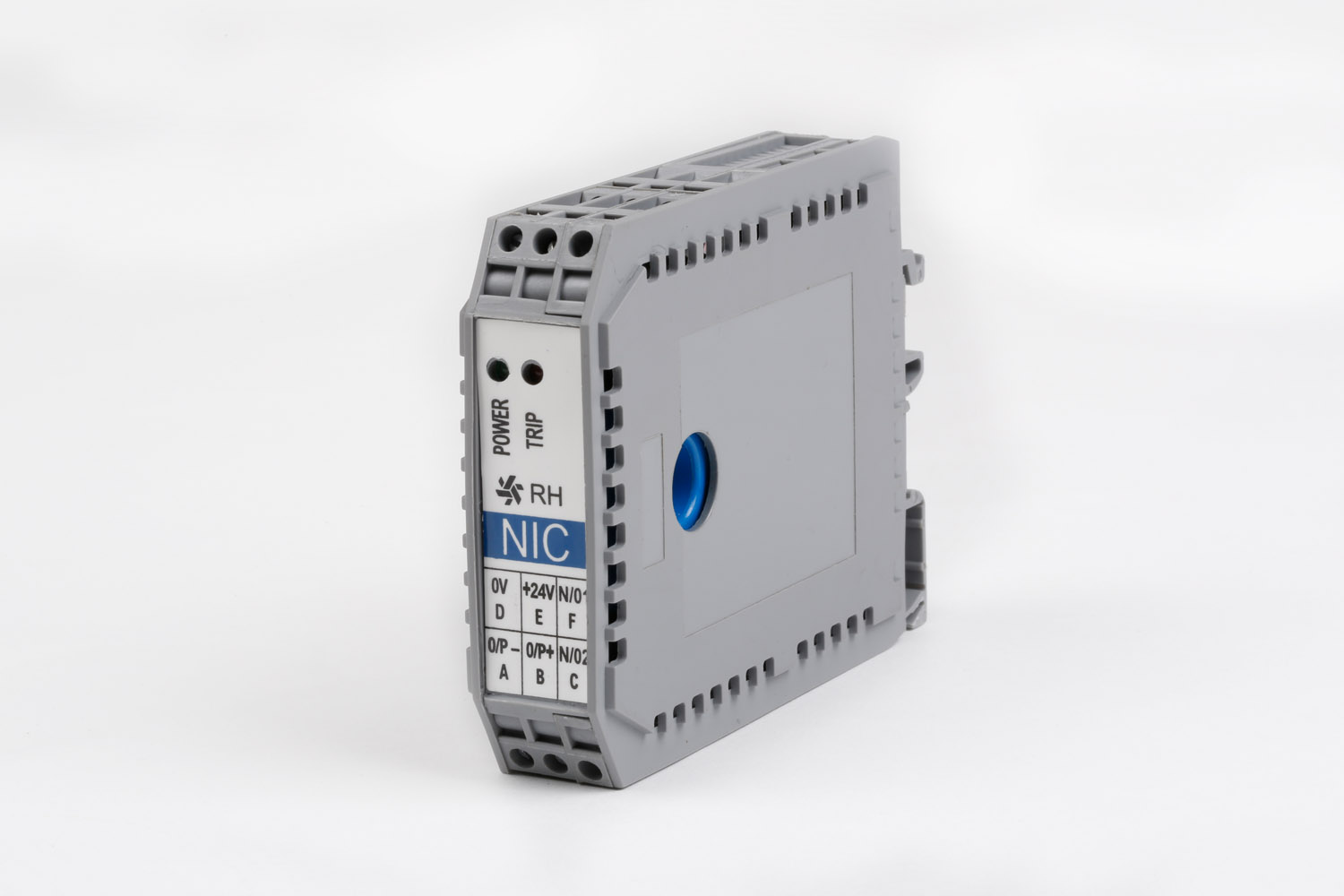

The NIC (Non-Intrusive Current Monitor) is used as part of the preventative maintenance systems on wayside applications.

The DIN rail mounted NIC units are designed to measure AC/DC currents up to +/-600mA when the primary cable is passed through the hole on the side of the unit.

The NIC provides a scaled 4-20mA current output to the end users’ equipment. This may take the form of a data logger which stores the raw data that can then be remotely downloaded for analysis.

Data analysis allows for trends to be visualised for equipment that might show degradation , i.e. current variations outside normal limit, thus allowing targeted maintenance to be carried out before actual failure.
